A 5 speed (500-3150 rpm) 1/2 HP Lathe with max swing over bed of 245mm and distance between centers is 457mm.
The Lathe has a 75mm Face plate and the Head and stock is on MT2 Morse Taper. Tool rest 150mm, Drive spindle is 1" x 10TPI.

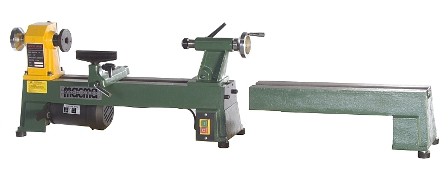

The MC1018 is a step up size wise from our model MC330 wood lathe and whilst still being a small lathe, an optional bed length extension can be purchased and when fitted the bed length is extended to a maximum length of 1.150 mm enabling the operator to turn an object as long as table leg or as short as a thimble. The all cast iron construction provides stability and is extremely durable, power transmission from the motor to the spindle is via a 6 section ribbed/grooved belt ensuring superior power to turn large objects. The 5 spindle speeds range from 500 to 3200 rpm with quick access to the stepped pulleys from the rear of the head stock to effect the belt change.
Specifications
| Spindle speeds ~ 5 of | 500 ~ 3200 rpm |
| Distance between centres | 440 mm |
| Swing over bed | 260 mm |
| Head and tailstock tapers | MT2 |
| Spindle thread | 1" x 10 TPI |
| Motor power | 1/2 HP |

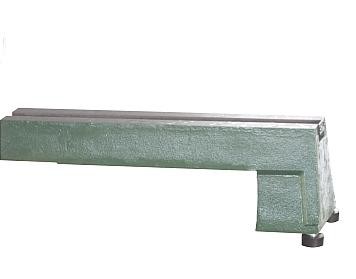

Optional Extra
Extend the bed of your MC 1018 Lathe to 1000mm between centers
Part no. MC 1018-EXT
