PT260-2

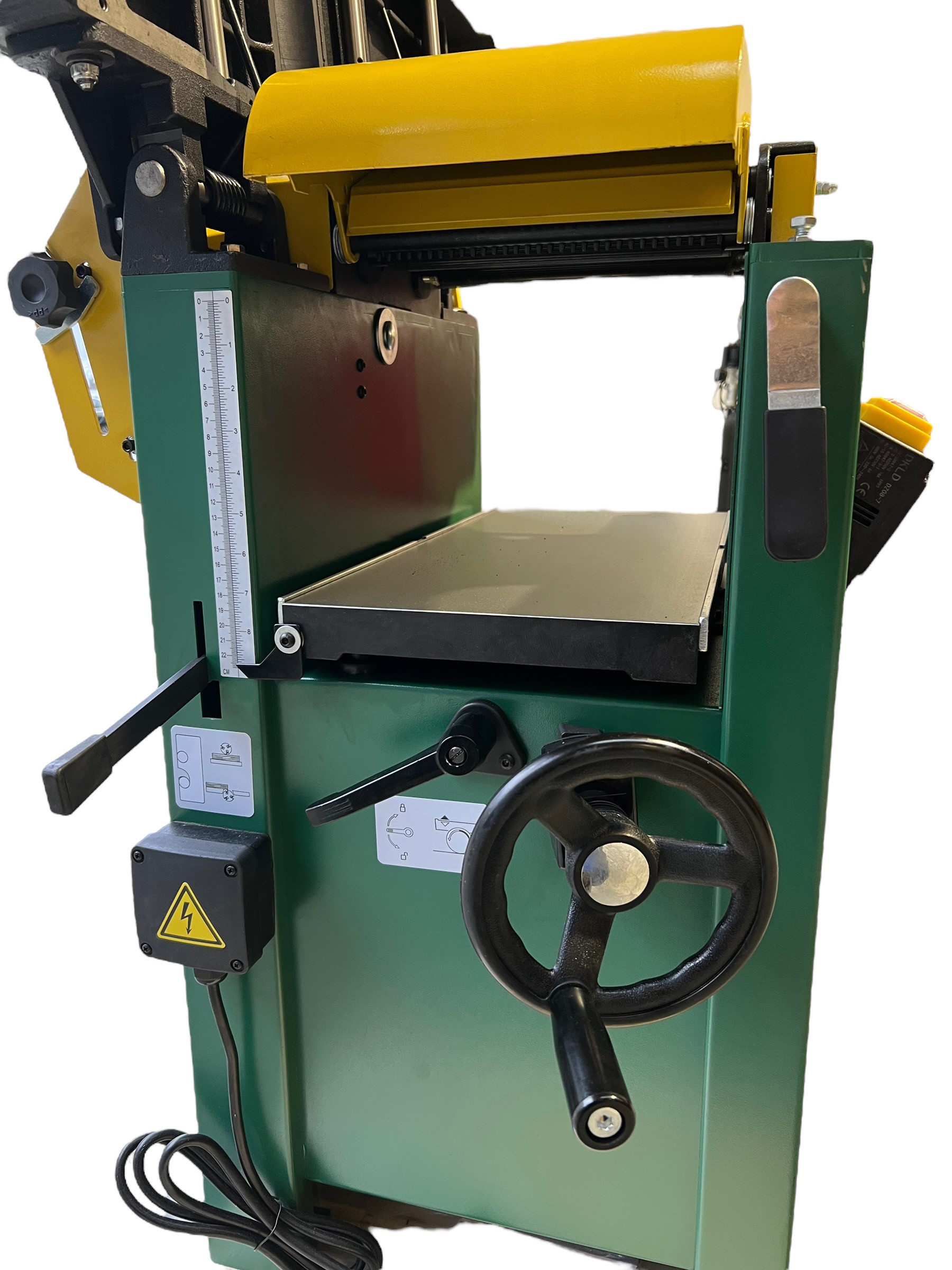

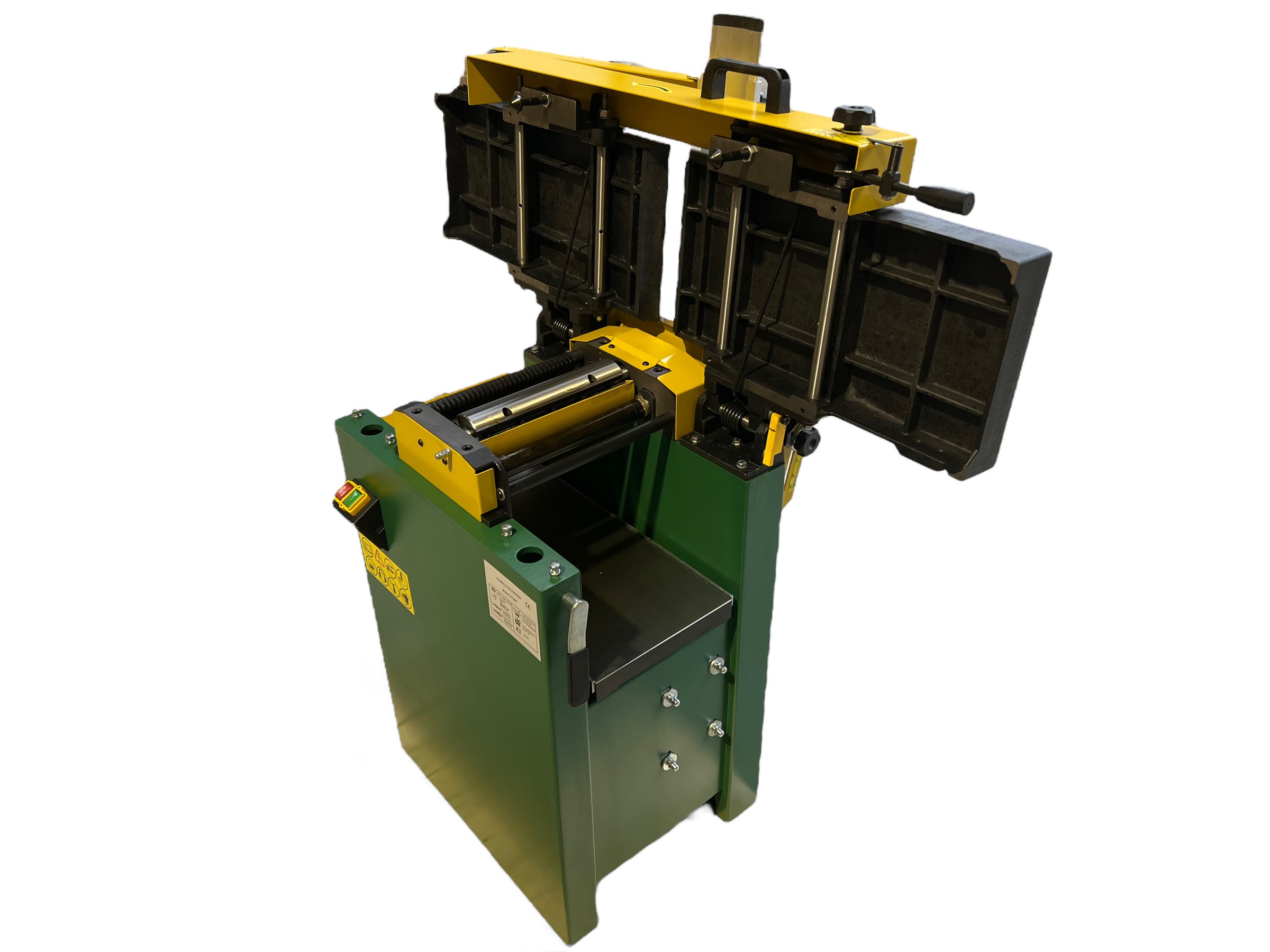

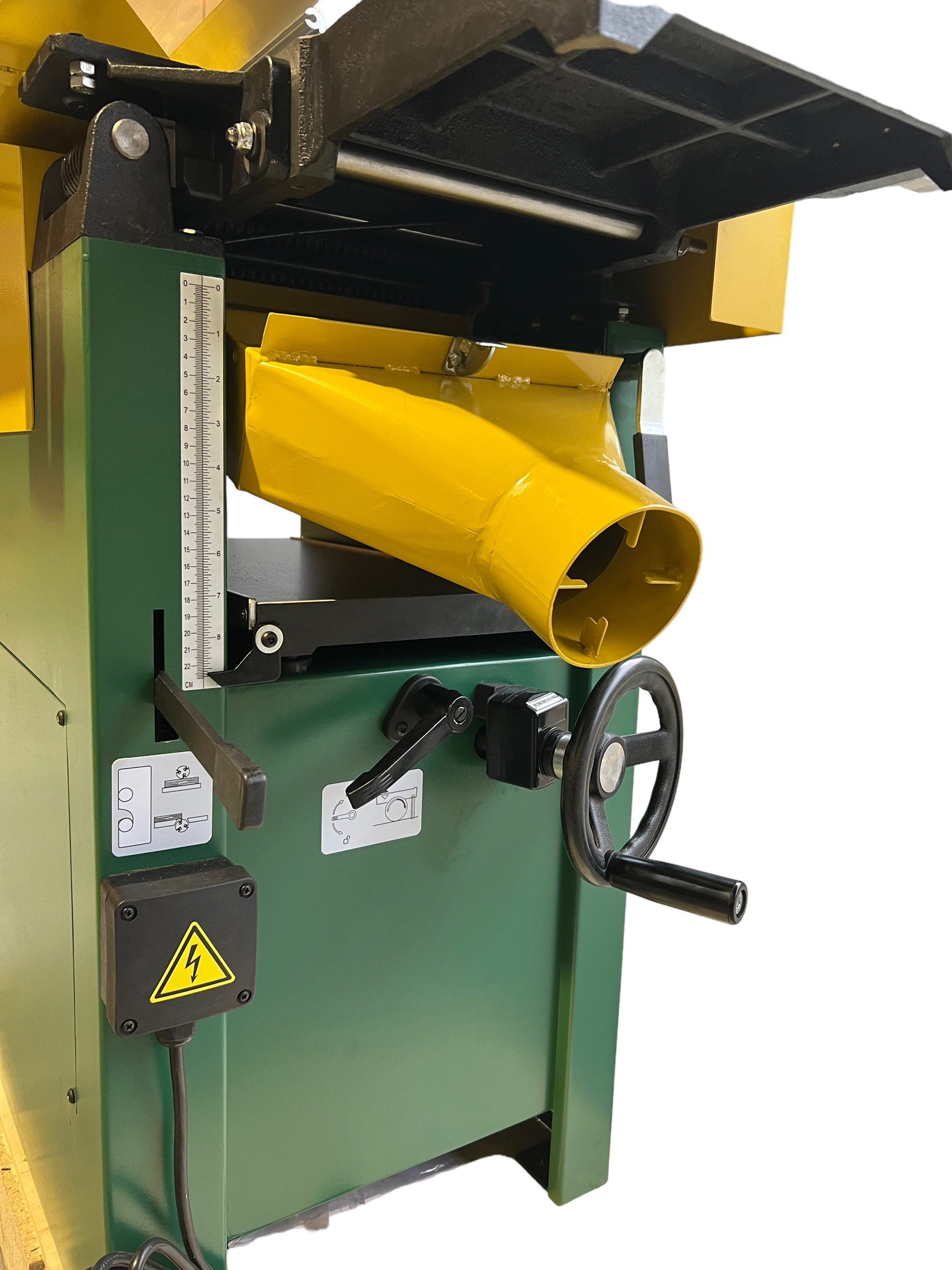

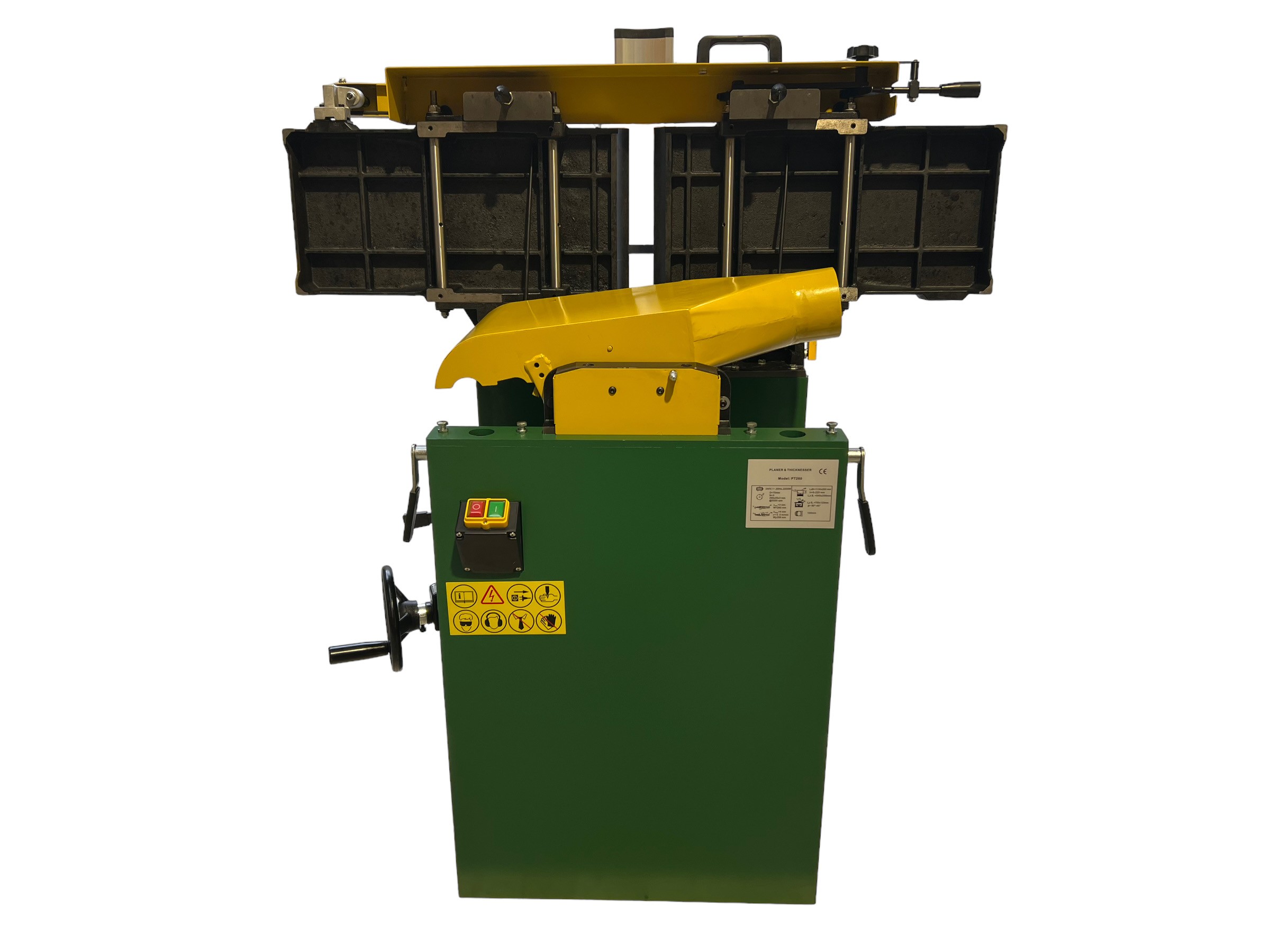

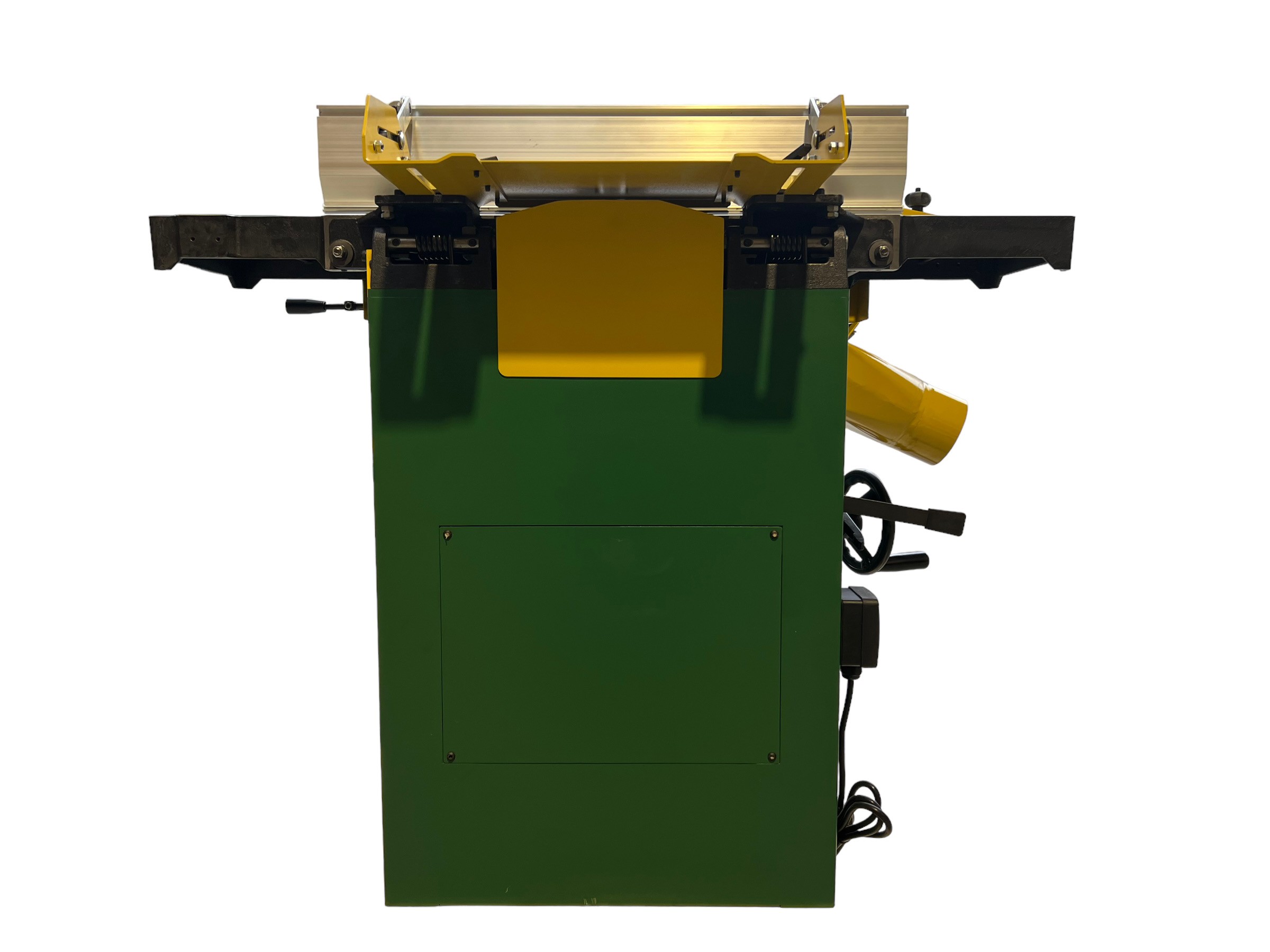

The PT260-2 is a powerful scaled down version of a commercial 12" Planner Thicknesser (PT300) It has a simple and rapid procedure of flipping the Table to convert to Thicknesser keeping parallelism and precision. Steel spiral grooved infeed roller.

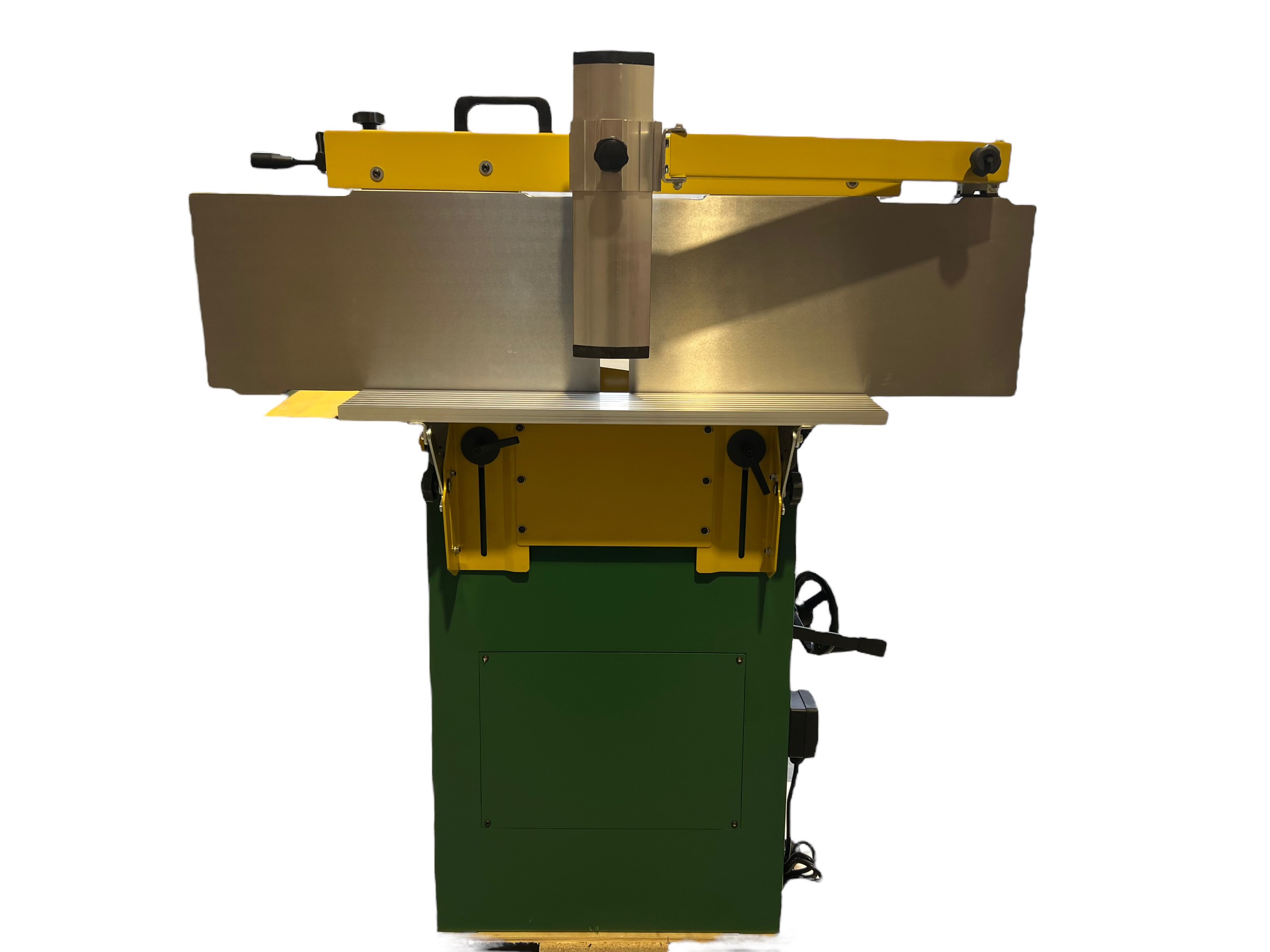

No need to remove the planner Fence or buzzer guard when converting from Planner to Thicknesser.
Solid Cast Iron precision ground tables. Power copper wound Induction motor. Three Knife cutterblock.
Option to upgrade to spiral cutter head.
PT260-2Box 115lx50wx97h 2.2Kw input Power. Table Length 1130mm, Max Planning width 260mm, Max planning depth 3mm. 75mm Blade head dai. Planner Fence 700x123mm Thicknesser Table length 545mm, Max Thicknesser width 258mm, max hieght 225mm, max depth 4mm. Feed speed 5.5m/min, 100mm Dust port. Can accept spiral cutting head.
Planner Knife setting Jig
