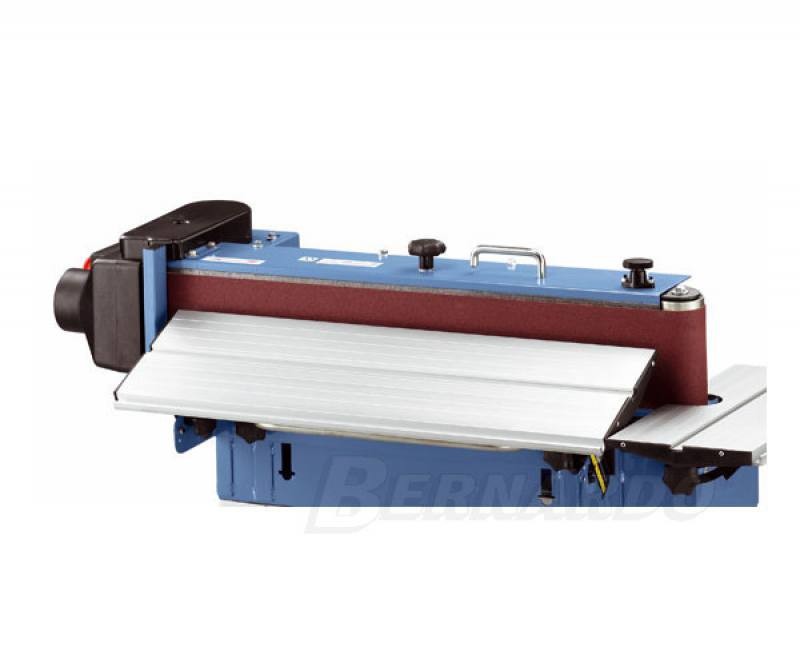

Macma BS 680 Belt Sander

The small and multi-functional edge sanding machine HV 70 with two tilt able supporting table can be used in horizontal and also in vertical position. Due to the unbeatable balance between price and efficiency this machine is the ideal solution for the do-it-yourself er.

• Tilt able working table from 0° up to 45°
• Angle adjustable supporting table for sanding curved work pieces included
• Horizontally and vertically use-able sanding aggregate
• Step-less adjustable mitre fence included
• Stopper for horizontal sanding included

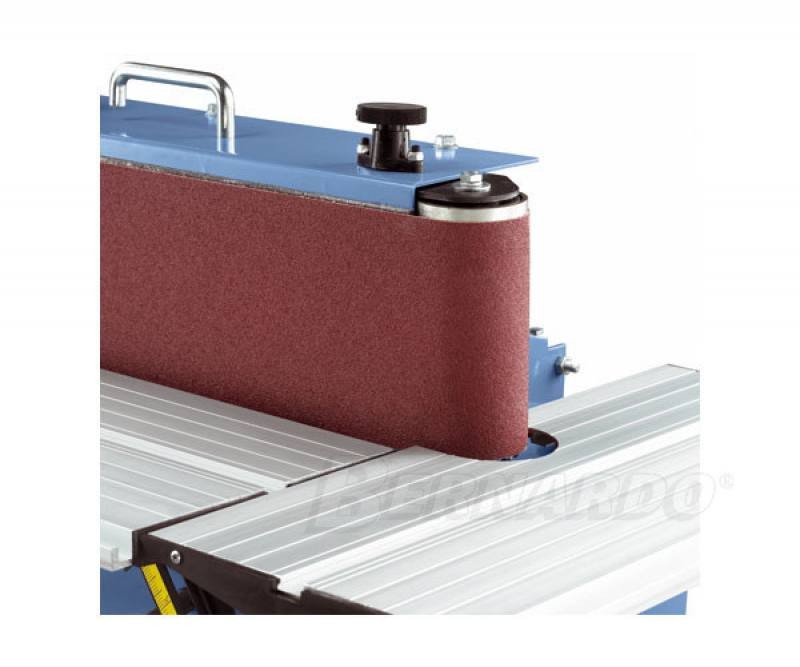

• Sanding table with graphite facing for easier slide of the sanding belt

Work Table                                      790 x 220 mm

Belt Length / Width                          2010 mm x 150 mm

Belt speed                                      13 m/s

Sanding Table                                790 x 221 mm

Supporting Table                            514 x 221 mm

Table Tilt                                         0 - 45deg

Dust chute Dia                               100 mm

Motor Power                                   1.1Kw (1.5HP) 230volt

Approx Weight                                86Kg

Downloads:

W7-BS680 (1).pdf (PDF)
