PT-15 (also available 16" Version PT-16) (see Pic with Optional Spiral cutter head)
Well proven in 100's of workshops, big capacity, low investment, rugged cast iron construction with precision ground work tables and excellent planed results are the 'Hallmarks' of our model PT15 thicknesser. The 4 Blade cutter block and power feed mechanical s making it an ideal choice for any one looking for a 'No Thrills' yet trouble free thicknesser. Feed Rate is controlled by a 2 speed oil bath gearbox with a selection of either 5 metres or 9 metres per minute planning speed. Anti kick back fingers are fitted for operators safety, over head rollers for work piece return after machining and a large solid cast Iron in feed and out feed table are provided. Blade changing is as easy as with the setting jig provided with the machine. Please note the PT15 now has as standard solid cast iron in and out feed tables and a wheel kit not shown in the photo.
Specifications
| Width of stock | 380 mm |
| Maximum thickness of stock | 200 mm |
| Depth of cut | 3 mm |
| Cutter block speed | 5000 RPM |
| Number of knives | 4 |
| In feed speed | 5 MPM ~ 9 MPM |
| In feed rollers | Solid serrated steel |

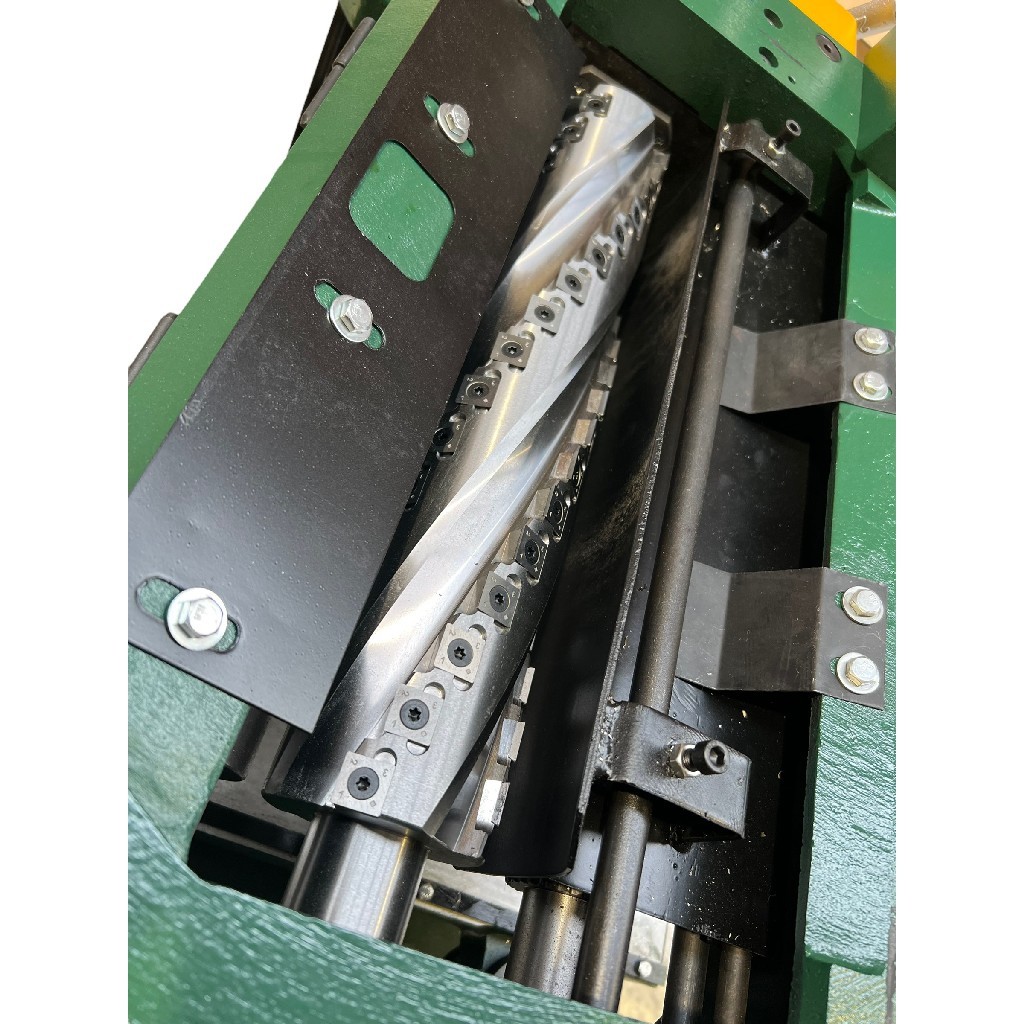

Motor power *** Optional Spiral Cutter shown pic**** | 3 HP |
Knife Set Of 3 (385X25X3MM) MM380 MM380A or Set 4 (PT15)
Thicknesser Knife setting Gauge
Planner Knife setting Jig
